Drying oven

Home > Products > Drying oven > Paraffin melting apparatus

Product :	Paraffin melting apparatus
Model :	J-PMO1

● It’s an apparatus used for melting paraffin without the danger of fire for tissue inspecting station in hospital & pathology room in medical college.

● It advances thesolidification of the melted paraffin in block with stainless beaker through outdoor effluence coke of apparatus side panel without opening the door.

● It’s good for reducing the melting time of paraffin by the heater installed at the bottom of chamber.

J-PMO control 450.jpg

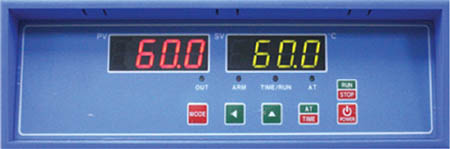

[ PID controller ]

Model

J-PMO1

Type
Gravity convection system

Overall size(W×D×H) mm

580×600×820

Chamber size(W×D×H) mm

450×450×450

Capacity
ℓ

91

Temperature
range
Ambient+10℃ ~ 80℃

using range
45℃ ~ 80℃

accuracy
±1.0℃ at 80.0℃

controller

PID controller

regulator
SSR type

Time

99hr 59min. or infinity

Thermocouple
Pt 100 ohms

Heater(sheath) W

400

Insulation
Glass wool

Observation window
Reinforced glass 5T

Door packing

High temperature grade foamed silicon rubber

Shelves
3ea

Ventilation hole

mm

Ø34×1ea

Safety device

ELB, overheating protection system

Material interior
Stainless steel plate

exterior
Steel plate with powder coated finish

Power source & consumption

AC 230V 50/60Hz 1phase

※ Information, design and specification are subject to change without prior notice.
